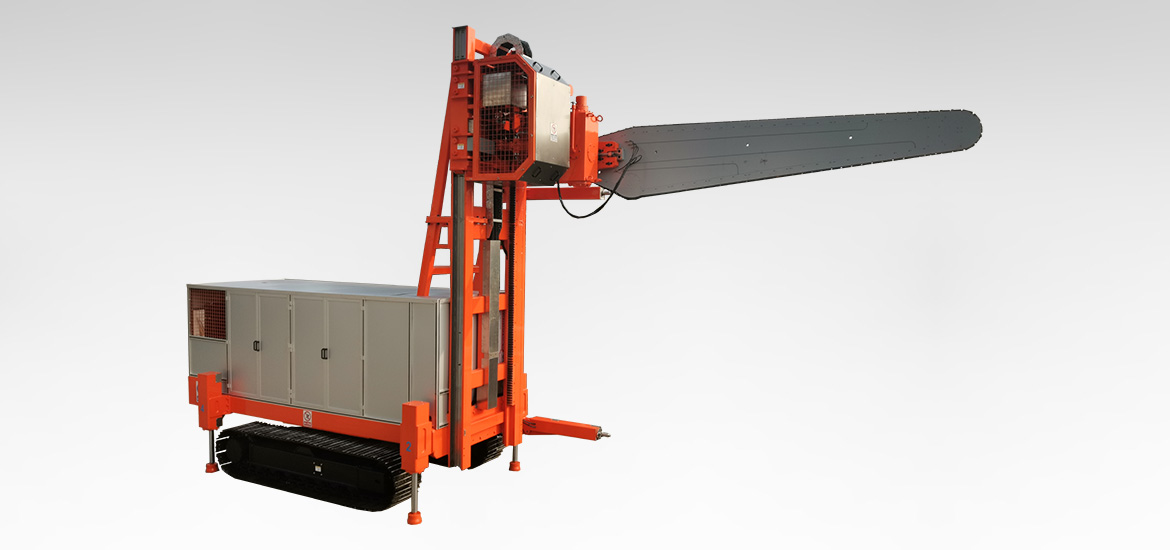

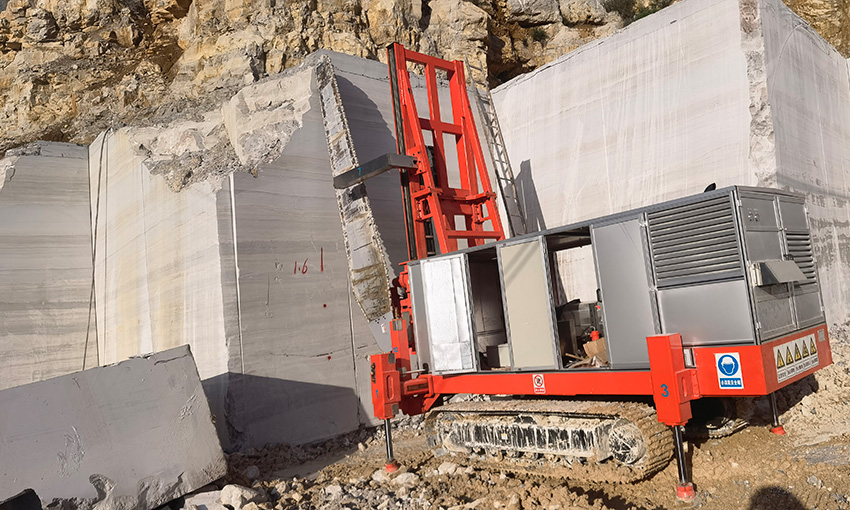

Crawler Type Chain Saw with Vertical-rail

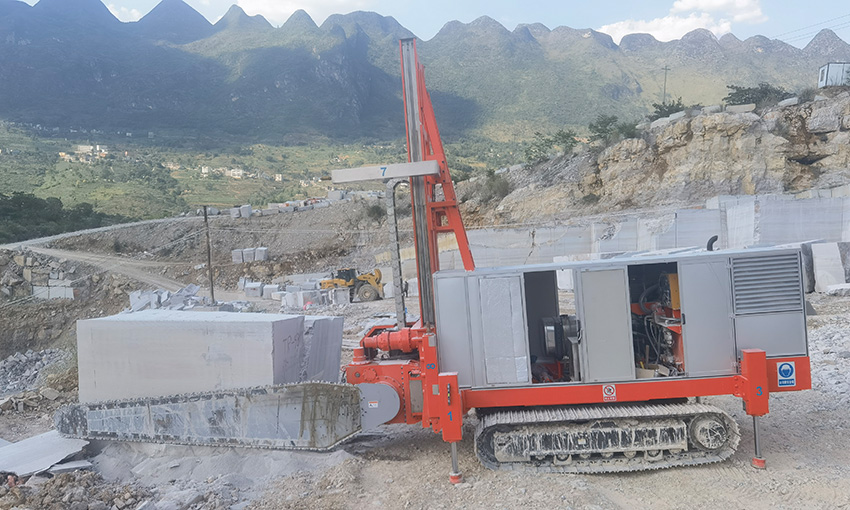

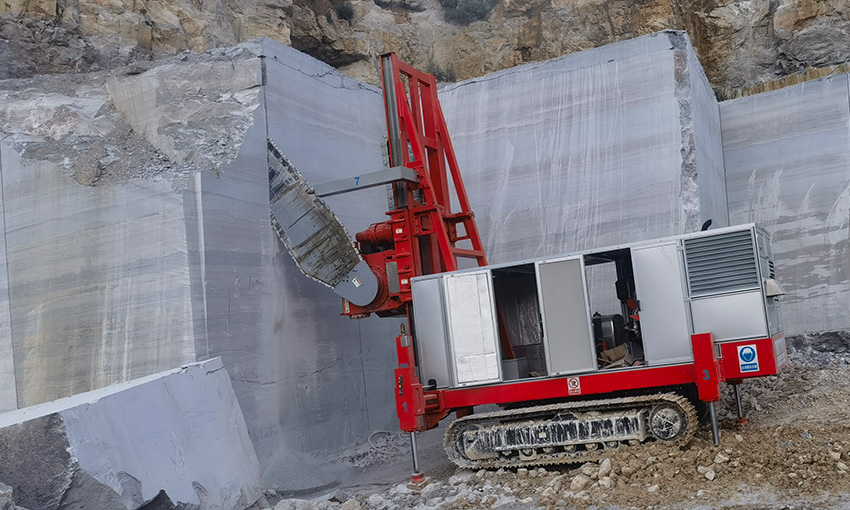

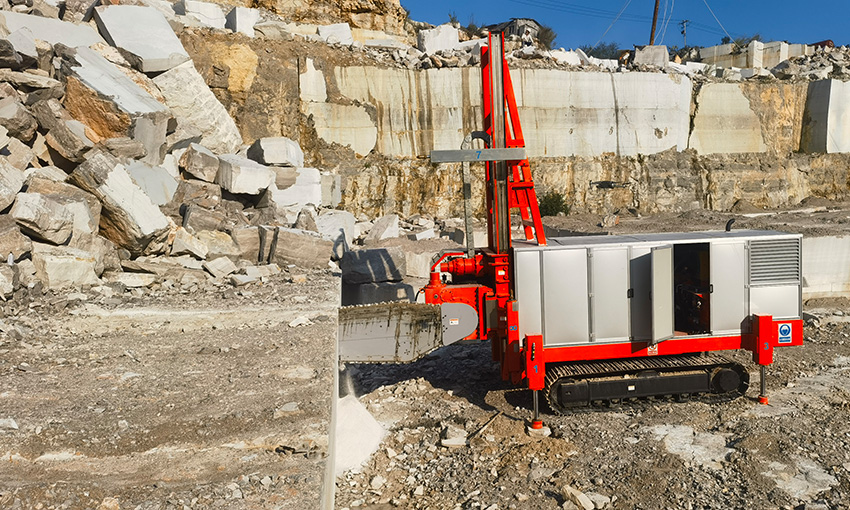

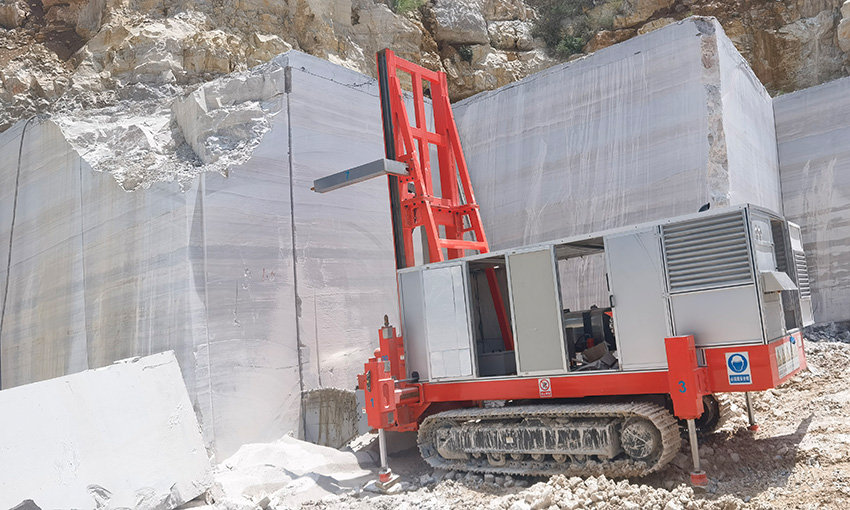

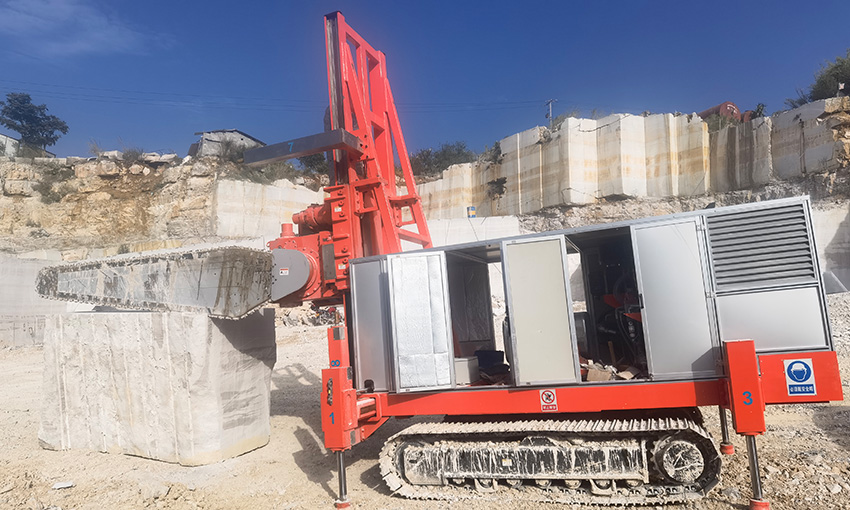

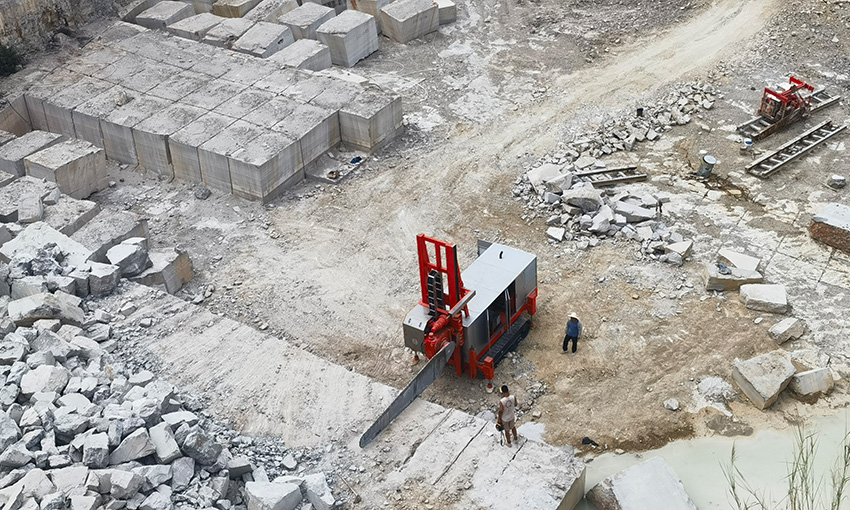

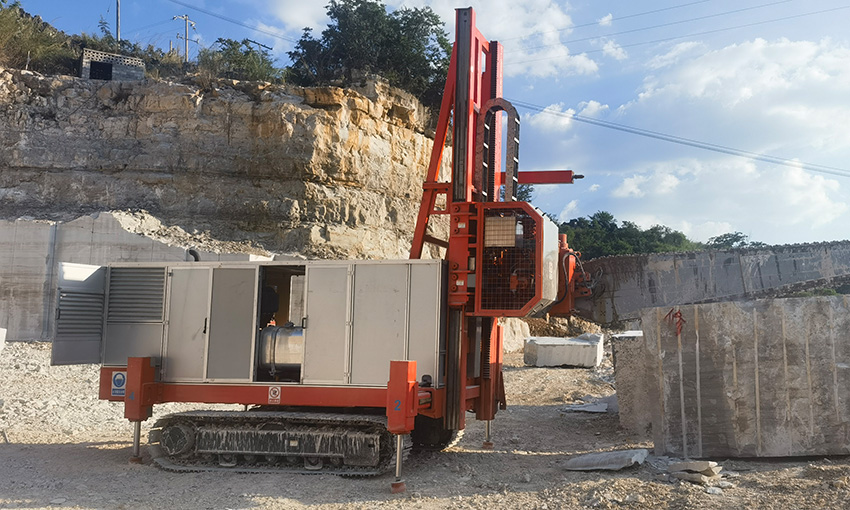

The machine is used to vertically cut mining benches,to divide large stones into small ones or to square irregular shaped blocks

The machine can move freely on its caterpillar track,independent of any other hoist machinery.

The machine is Powered by diesel

Dry cut, no need of water supply.

The machine is operated by a wireless controller and is friendly to operators.



Product parameters


Model LGC-LD-CS8000/3600
Cut direction vertical
Max cut depth 3.6 meters
Max cut height 8 meters
Cut kerf width 40mm
Power supply mode diesel fuel
Total power 74kW/100HP
Machine weight 16 tons
