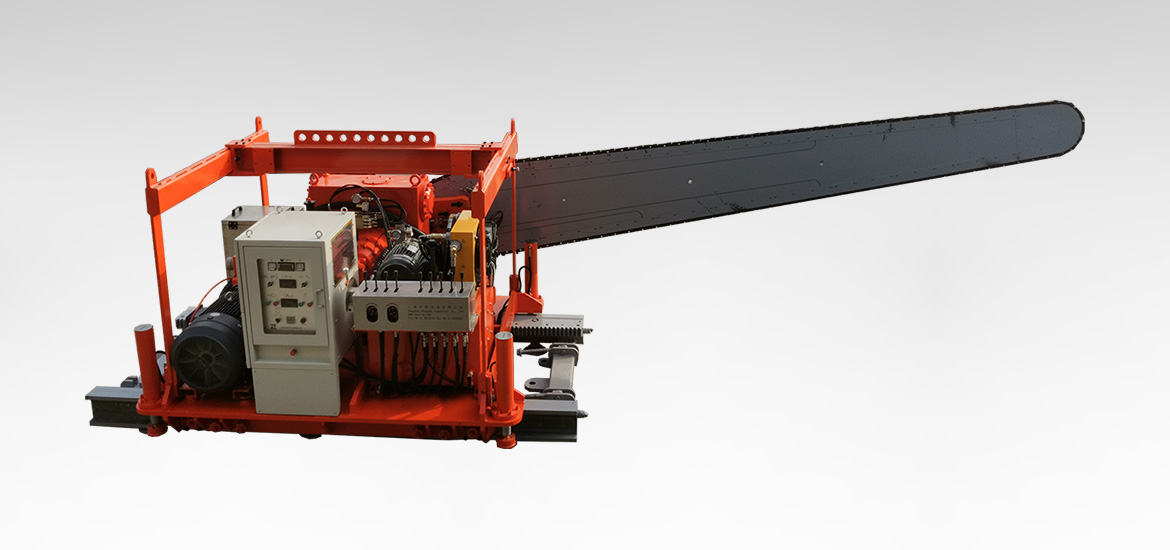

Modular-rail Type Chain Saws

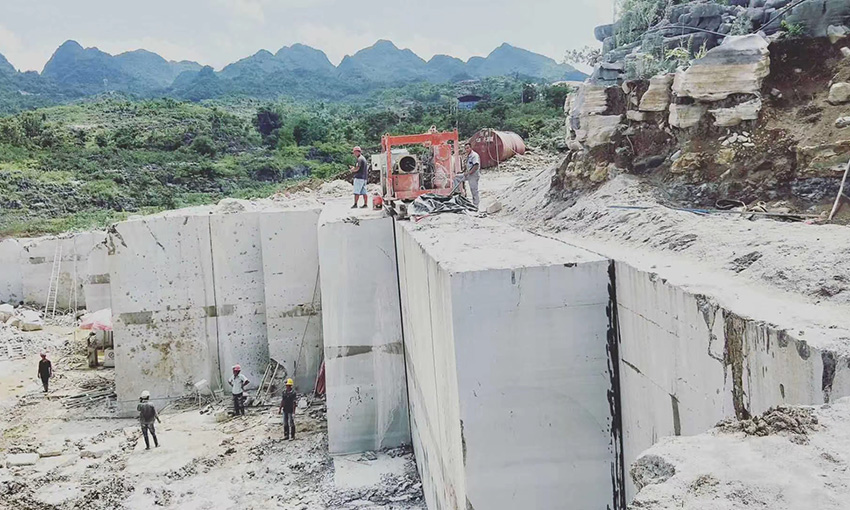

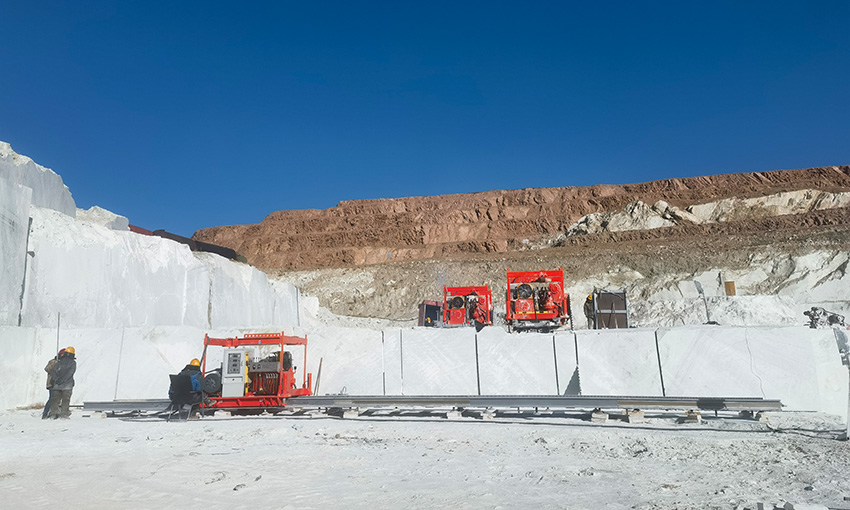

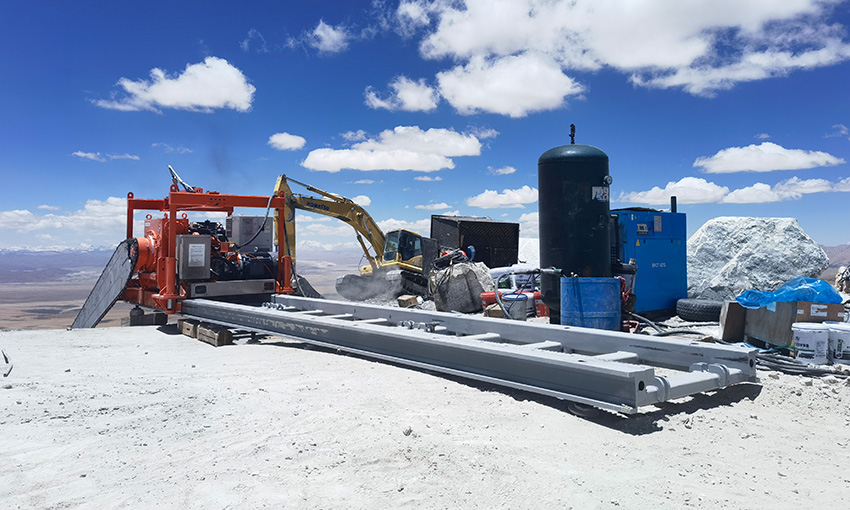

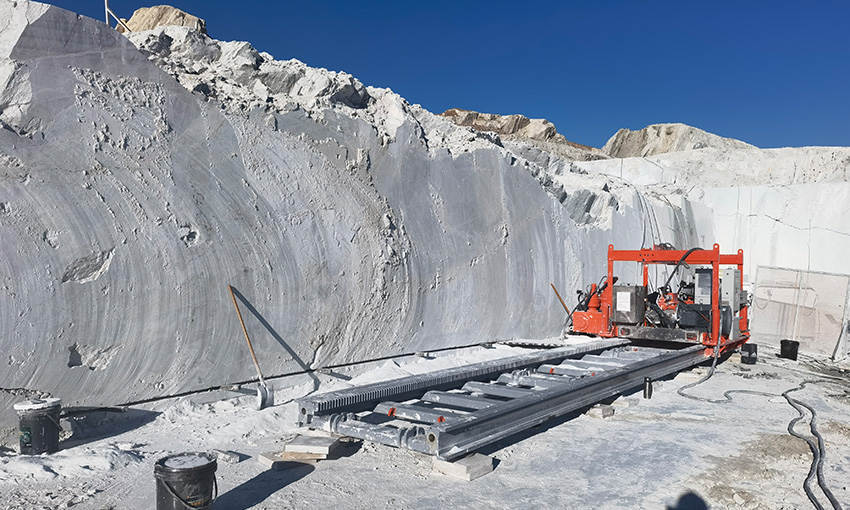

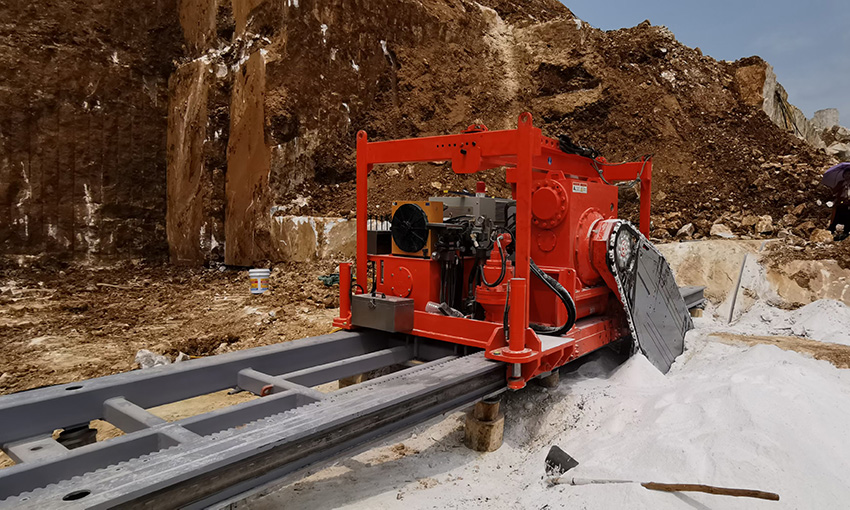

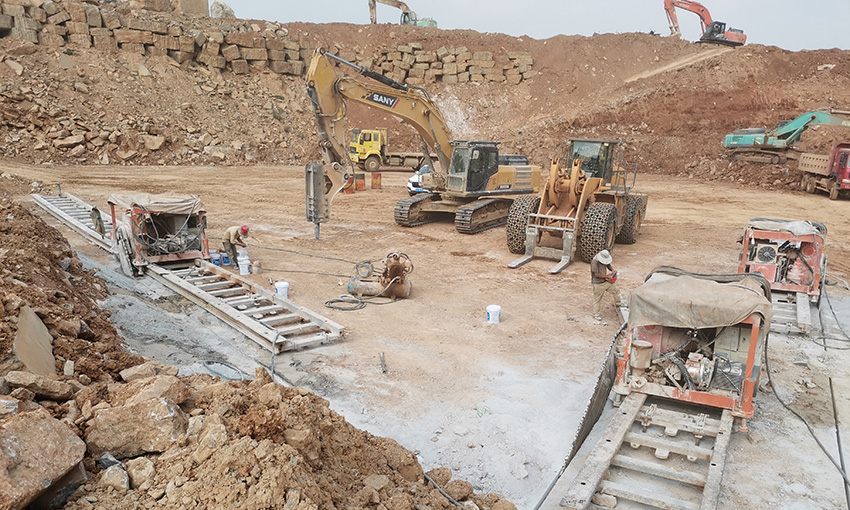

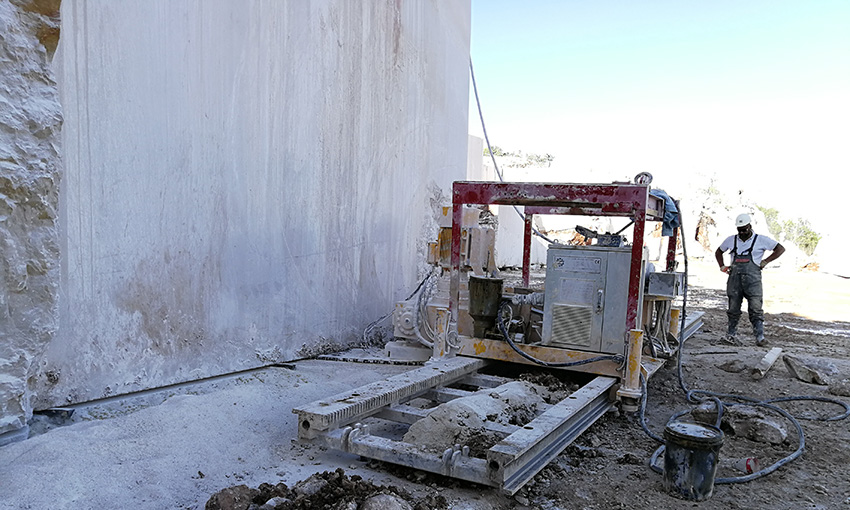

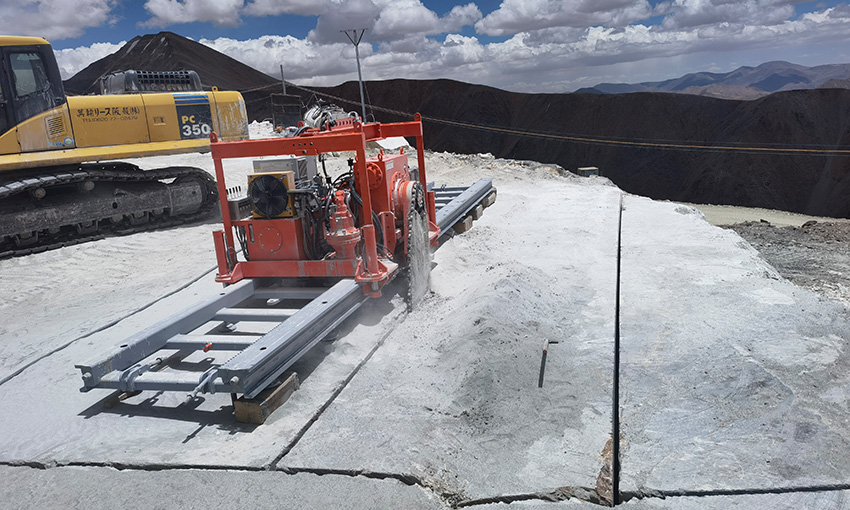

The Basic models, The rail chain saws are placed on the stone and the rails are used interchangeably.
Each machine can cut both vertically and horizontally.
Dry cut, no need of water supply.
Wide application range of quarries and high working efficiency.
Each machine can cut both vertically and horizontally.
Dry cut, no need of water supply.
Wide application range of quarries and high working efficiency.
Product parameters
Models | GD-CS2500 | GD-CS3200 | GD-CS4000 | GD-CS5000 | GD-CS6000 | GD-CS7500 |
Vertical Cut | √ | √ | √ | √ | √ | √ |
Horizontal Cut | √ | √ | √ | √ | √ | √ |
Maximum Cut Depth | 2.5 meters | 3.2 meters | 4 meters | 5 meters | 6 meters | 7.5 meters |
Cut Kerf Qidth | 40mm | 40mm | 40mm | 40mm | 40mm | 40mm |
Total Power | 45kW | 55kW | 55kW | 65kW | 65kW | 65kW |
Machine Weight | 5.1 tons | 7.1 tons | 7.6 tons | 9 tons | 10 tons | 11 tons |
