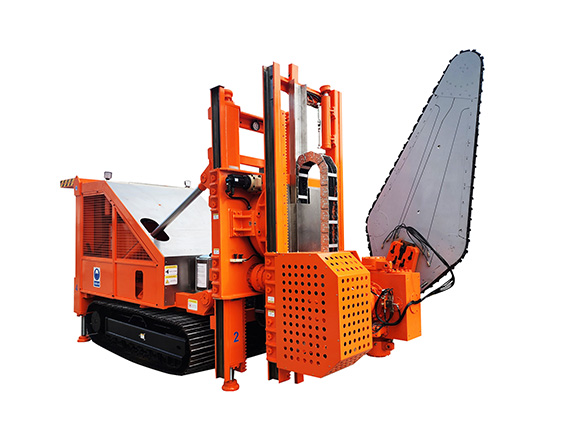

Crawler Type Chain Saw with Vertical-rail
The machine is used to vertically cut mining benches,to divide large stones into small ones or to square irregular shaped blocks
The machine can move freely on its caterpillar track,independent of any other hoist machinery.
The machine is Powered by diesel
Dry cut, no need of water supply.
The machine is operated by a wireless controller and is friendly to operators.
The machine can move freely on its caterpillar track,independent of any other hoist machinery.
The machine is Powered by diesel
Dry cut, no need of water supply.
The machine is operated by a wireless controller and is friendly to operators.
Product parameters
| Model | LD-CS3600-L | LD-CS5000-L |
| Max Cutting Depth (m) | 3.6 | 5.0 |
| Max Cutting Height (m) | 8.0 | 10.0 |
| Kerf Width (mm) | 40 | 40 |
|
Vertical Stroke of the Blade Arm (m) |
4.0 | 5.0 |
|
Horizontal Stroke of the Blade Arm (mm) |
200 | 200 |
| Total Power (kW) * | 65 | 75 |
| Machine Weight (kg) | 16000 | 19000 |
|
Note: *The machine can be powered by either a diesel engine or an electric drive, but only one of the two can be selected.* |
||
