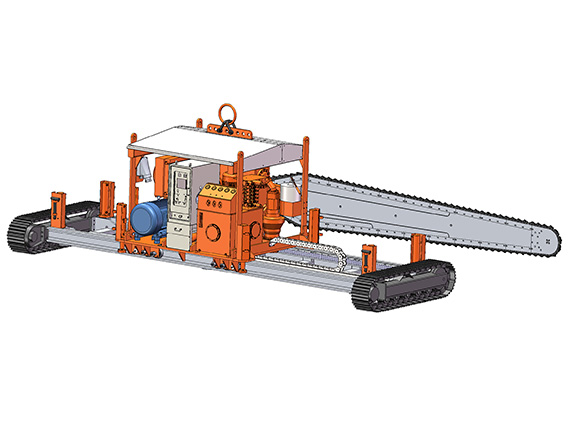

Rail Type Chain Saw with Hoist Jib
The upgraded model, This machine is also placed on the stone, The rails are moved by the self-lifting arm and used interchangeably.
Each machine can cut both vertically and horizontally.
Dry cut, no need of water supply.
Wide application range of quarries and high working efficiency.
Each machine can cut both vertically and horizontally.
Dry cut, no need of water supply.
Wide application range of quarries and high working efficiency.
Product parameters
| Model | GD-CS2500-XD | GD-CS3200-XD | GD-CS4000-XD |
| Max Cutting Depth (m) | 2.5 | 3.2 | 4.0 |
| Kerf Width (mm) | 40 | 40 | 40 |
| Cutting Speed (m/h) | 0~4 |
0~4 |
0~4 |
| Blade Rotation | 360° |
360° |
360° |
| Rail Length (m) | 3.75 |
3.75 |
3.75 |
| Total Power (kW) | 45 | 55 | 55 |
| Machine Weight (kg) | 7500 | 8200 | 8500 |
| Machine Dimensions (cm) | 375*195*240 |
375*195*240 |
375*195*240 |
